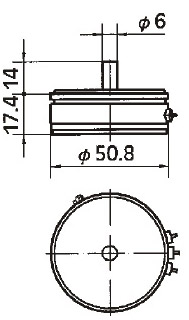

| Series |
WD 620 |
| Angle of rotation |
0-90° |
| Winding data |
Output in connection with separate electronics only,partial
inductance 35 mH, total inductance 90 mH DC resistance 470Ω, linearity<±0.5%
|
Voltage output
|
0-10V,,RL≥500Ω,4-wire
circuit |
| Current output |
0 or 4-20mA, RL≤600Ω,2-,3-
or 4-wire circuit |
| Supply |
18-330 VDC, approx. 60 mA, 2-wire 20mA |
| Linearity |
≤±0.5% |
| Resolution |
infinite |
| Temperature coefficient |
max. 0.1%/10K ,typical 0.05%/10K |
| Angle ranges |
Adjustable by rear trimming potentiometer from 0-6°
to 0-24° or 0-24°to 0-90° or 0-90° to 0-360° |
|
