Model

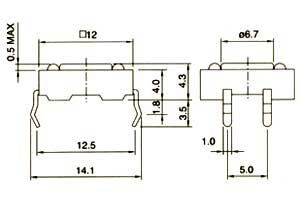

Outline Drawing

Features/Individual specifications

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±30gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

1.Rating:DC12V 50mA
2.Travel:0.8±0.2mm
3.Operating Force:130±30gf
4.Contact Resistance:1kΩ Max
5.Life:100,000 Cycles Min.

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:180gf or 260gf
4.Contact Resistance:500mΩ Max
5.Life:50,000 Cycles or 30,000 Cycles Min.

1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
