Model Outline Drawing Features/Individual specifications
 TS1104P
轻触开关TS1104P

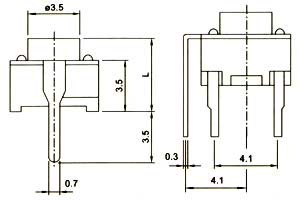

轻触开关TS1104P尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1104PA 4.3 TS1104PD 9.5
TS1104PA 5.0 TS1104PE 7.3
TS1104PB 7.0 TS1104PF 12.5
TS1104PC 8.0 TS1104PG 13.5
 TS1104
轻触开关TS1104
轻触开关TS1104尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1104A 4.3 TS1104D 9.5
TS1104A 5.0 TS1104E 7.3
TS1104B 7.0 TS1104F 12.5
TS1104C 8.0 TS1104G 13.5
 TS1104RP
轻触开关TS1104RP

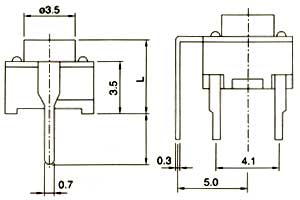

轻触开关TS1104RP尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1104RPA 4.3 TS1104RPD 9.5
TS1104RPA 5.0 TS1104RPE 7.3
TS1104RPB 7.0 TS1104RPF 12.5
TS1104RPC 8.0 TS1104RPG 13.5
 TS1106
轻触开关TS1106

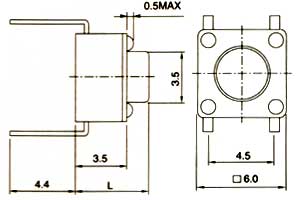

轻触开关TS1106尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1106A 4.3 TS1106D 9.5
TS1106A 5.0 TS1106E 7.3
TS1106B 7.0 TS1106F 12.5
TS1106C 8.0 TS1106G 13.5

　
