Model Outline Drawing Features/Individual specifications
 TS1102R
轻触开关TS1102R

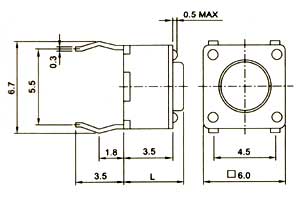

轻触开关TS1102R尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1102RA 4.3 TS1102RD 9.5
TS1102RA 5.0 TS1102RE 7.3
TS1102RB 7.0 TS1102RF 12.5
TS1102RC 8.0 TS1102RG 13.5
 TS1108
轻触开关TS1108
轻触开关TS1108尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1109
轻触开关TS1109

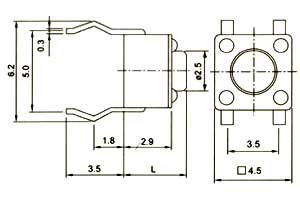

轻触开关TS1109尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1109A 3.8
TS1109A 7.0
 TS1109S
轻触开关TS1109S
轻触开关TS1109S尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1109SA 3.8
TS1109SA 7.0

　
