Model Outline Drawing Features/Individual specifications
 TS1102M
轻触开关TS1102M
轻触开关TS1102M尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1102MA 3.15 TS1102MD 8.35
TS1102MA 3.85 TS1102ME 6.15
TS1102MB 5.85 TS1102MF 11.35
TS1102MC 6.85 TS1102MG 12.35
 TS1102U
轻触开关TS1102U

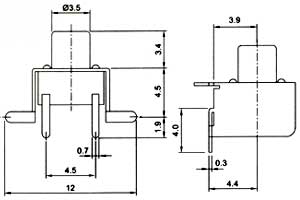

轻触开关TS1102U尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1102W
轻触开关TS1102W
轻触开关TS1102W尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L)
TS1102WA 4.3
TS1102WA 5.0

*H:8.9mm
 TS1102S
轻触开关TS1102S
轻触开关TS1102S尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L)
TS1102SA 4.3
TS1102SA 5.0

*H:9.10mm

　
