Model Outline Drawing Features/Individual specifications
 TS1102P
轻触开关TS1102P

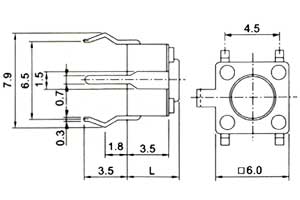

轻触开关TS1102P尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,150±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1102PA 4.3 TS1102PD 9.5
TS1102PA 5.0 TS1102PE 7.3
TS1102PB 7.0 TS1102PF 12.5
TS1102PC 8.0 TS1102PG 13.5
 TS1102T
轻触开关TS1102T

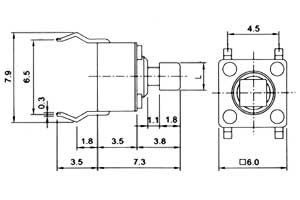

轻触开关TS1102T尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,150±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L)
TS1102TA 2.4
TS1102TA 2.8
 TS1102H
轻触开关TS1102H
轻触开关TS1102H尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,150±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
Model No. Knob(L) Model No. Knob(L)
TS1102HA 3.15 TS1102HD 8.35
TS1102HA 3.85 TS1102HE 6.15
TS1102HB 5.85 TS1102HF 11.35
TS1102HC 6.85 TS1102HG 12.35
 TS1102HT
轻触开关TS1102HT
轻触开关TS1102HT尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,150±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:10,000 Cycles Min.
Model No. Knob(L)
TS1102HTA 2.4
TS1102HTA 2.8

　
