Model

Outline Drawing

Features/Individual specifications

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.

Model No.	Knob(L)
TS1101UA	4.3
TS1101UA	5.0

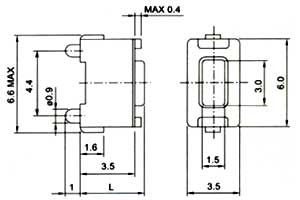

TS1101H

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.

Model No.	Knob(L)
TS1101HA	4.3
TS1101HA	5.0

*1102NH,NHA:Without Embossing

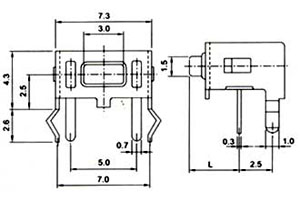

TS1101V

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:30,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.

Model No.	Knob(L)
TS1101VA	3.15
TS1101VA	3.85

生产代理各类旋转开关`角度传感器`电阻尺`编码器`旋钮的销售，产品包括公司生产的旋转式电位器、直滑式电位器、微调式电位器、大功率线绕电位器以及KTC系列位移传感器（电子尺）KTF系列位移传感器（电子尺），另外还代理销售Arzamas俄罗斯电位器、TOCOS、RIVER、NOBLE日本电位器、JASON台湾电位器、CONTELEC德国电位器等国外产品。传感器

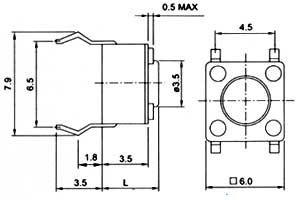

TS1102

1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:30,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

Model No.	Knob(L)	Model No.	Knob(L)
TS1102A	4.3	TS1102D	9.5
TS1102A	5.0	TS1102E	7.3
TS1102B	7.0	TS1102F	12.5
TS1102C	8.0	TS1102G	13.5
