| Model | Outline Drawing | Features/Individual specifications |
|
|
|
 |

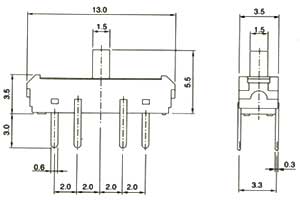

1.Rating:DC6V 0.3A
2.Circuit:1C-3P
3.Timing:Non-Shorting
4.Travel:2 + 2mm
5.Operating Force:L->C->R:250±100gf
L->C->R:300±150gf
|
|
|
|
|
|
|
 |

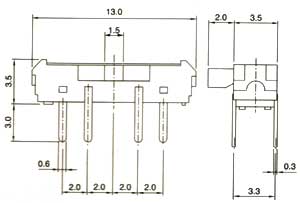

1.Rating:DC6V 0.3A
2.Circuit:1C-3P
3.Timing:Non-Shorting
4.Travel:2 + 2mm
5.Operating Force:L->C->R:250±100gf
L->C->R:300±150gf
|
|
|
|
|
|
|
 |

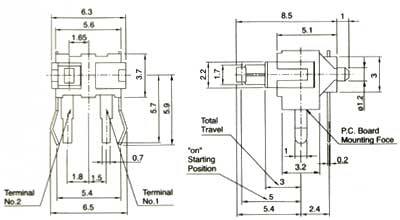

1.Rating:DC30V 0.1A
2.Circuit:1C-1P
3.Operating Force:40gf Max
4.Contact Resistance:1Ω Max.
5.Life:50,000 Cycles Min. |
|
|
|
|
|
|
|

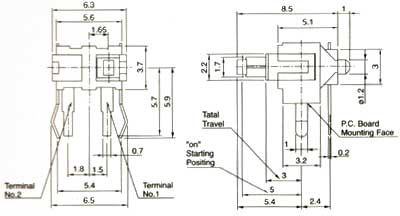

1.Rating:DC30V 0.1A
2.Circuit:1C-1P
3.Operating Force:40gf Max
4.Contact Resistance:1Ω Max.
5.Life:50,000 Cycles Min. |
|
|
|
|
