Model Outline Drawing Features/Individual specifications
 SS2235S
轻触开关SS2235S

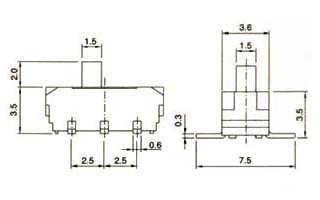

轻触开关SS2235S尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf
 SS2245S
轻触开关SS2245S

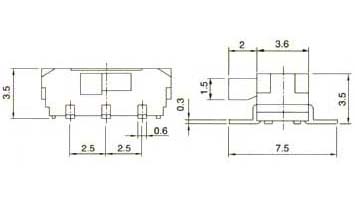

轻触开关SS2245S尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf
 SS2336
轻触开关SS2336

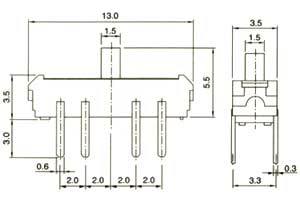

轻触开关SS2336尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-3P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:L->C->R:200±100gf
                                  L->C->R:300±150gf
 SS2346
轻触开关SS2346

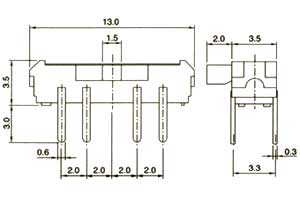

轻触开关SS2346尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-3P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:L->C->R:200±100gf
                                  L->C->R:300±150gf

　
