Model Outline Drawing Features/Individual specifications
 SS1250
轻触开关SS1250
轻触开关SS1250尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf
Model No. Knob(L)
1250A 2.0
1250A 4.4
 SS1260
轻触开关SS1260

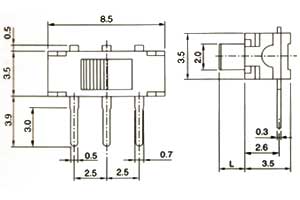

轻触开关SS1260尺寸图
1.Rating:DC6V 0.3A
2.Circuit:1C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf
Model No. Knob(L)
1260A 2.0
1260A 4.4
 SS2235
轻触开关SS2235
轻触开关SS2235尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf
 SS2245
轻触开关SS2245

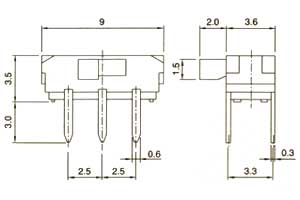

轻触开关SS2245尺寸图
1.Rating:DC6V 0.3A
2.Circuit:2C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf

　
