| Model |
Outline
Drawing |
Features/Individual
specifications |
|
|
|
 |
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min. |
| Model No. |
Knob(L) |
| TS1187A |
1.5 |
| TS1187A |
4.3 |
*Stem:Metal,Plastic |
|
|
|
|
|
 |
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf
4.Contact Resistance:50mΩ Max
5.Life:100,000 Cycles Min. |
| Model No. |
Knob(L) |
Model No. |
Knob(L) |
| TS2101A |
3.15 |
TS2101D |
8.35 |
| TS2101A |
3.85 |
TS2101E |
6.85 |
| TS2101B |
5.85 |
TS2101F |
6.15 |
|
|
|
|
|
|
 |

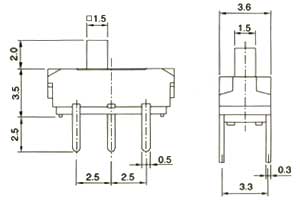

1.Rating:DC6V 0.3A
2.Circuit:1C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf |
|
|
|
|
|
|
|

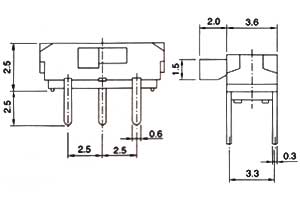

1.Rating:DC6V 0.3A
2.Circuit:1C-2P
3.Timing:Non-Shorting
4.Travel:2mm
5.Operating Force:200±100gf |
|
|
|
|
