Model Outline Drawing Features/Individual specifications
 TS1107
轻触开关TS1107

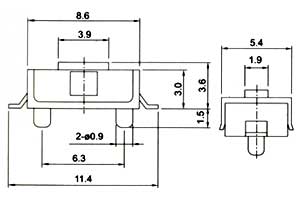

轻触开关TS1107尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.

*TS1107A:With Embossing
 TS1127
轻触开关TS1127

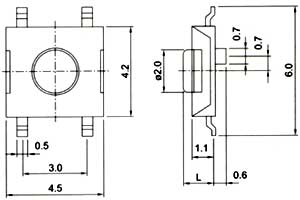

轻触开关TS1127尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1127A 1.5
TS1127A 4.3

*Stem:Metal,Plastic
 TS1137
轻触开关TS1137
轻触开关TS1137尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

*H:8,10mm
 TS1177
轻触开关TS1177

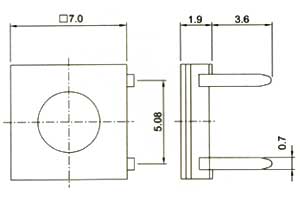

轻触开关TS1177尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:160±30gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
6.Dust Proof
7.Click Rsquired

　
