Model Outline Drawing Features/Individual specifications
 TS1103E
轻触开关TS1103E

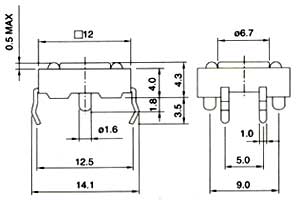

轻触开关TS1103E尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

*With Embossing
 TS1103T
轻触开关TS1103T

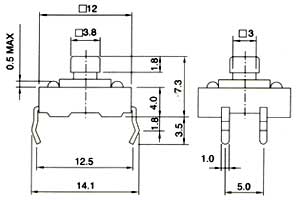

轻触开关TS1103T尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1103S
轻触开关TS1103S

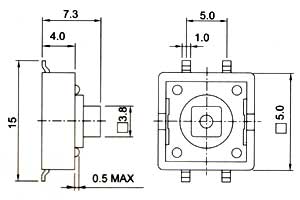

轻触开关TS1103S尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±30gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1103P
轻触开关TS1103P
轻触开关TS1103P尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

　
