Model Outline Drawing Features/Individual specifications
 TS1103A
轻触开关TS1103A

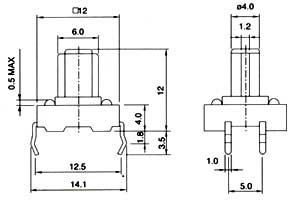

轻触开关TS1103A尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1103B
轻触开关TS1103B

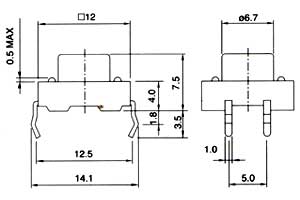

轻触开关TS1103B尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1103C
轻触开关TS1103C

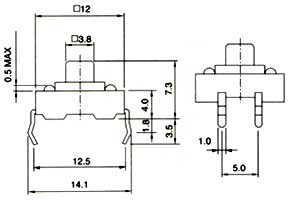

轻触开关TS1103C尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.
 TS1103D
轻触开关TS1103D

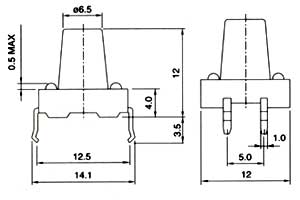

轻触开关TS1103D尺寸图
1.Rating:DC12V 50mA
2.Travel:0.3±0.15mm
3.Operating Force:160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:100,000 Cycles Min.

　
