Model Outline Drawing Features/Individual specifications
 TS1101
轻触开关TS1101

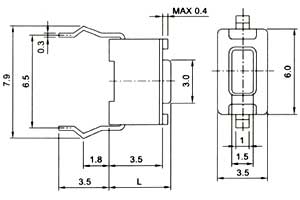

轻触开关TS1101尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1101A 4.3
TS1101A 5.0
 TS1101E
轻触开关TS1101E

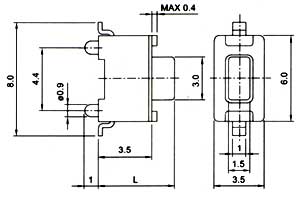

轻触开关TS1101E尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1101EA 4.3
TS1101EA 5.0

*1102NE,NEA:Without Embossing
 TS1101R
轻触开关TS1101R

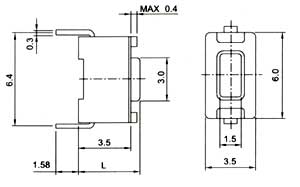

轻触开关TS1101R尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1101RA 4.3
TS1101RA 5.0
 TS1101S
轻触开关TS1101S
轻触开关TS1101S尺寸图
1.Rating:DC12V 50mA
2.Travel:0.25±0.1mm
3.Operating Force:130,160±30gf or 250±50gf
4.Contact Resistance:100mΩ Max
5.Life:50,000 Cycles Min.
Model No. Knob(L)
TS1101SA 4.3
TS1101SA 5.0

　
