ELECTRICAL SPECIFICATIONS |
|
|
|
|
| |
TOTAL
RESISTANCE&TOLERANCE................................. |
|
5k-2M±20%(MORE
THAN 1M±30%) |
| |
RAEED
WATTAGE................................................................. |
|
OTHER THAN |
B CURVE 0.125 W
B CURVE 0.06 W |
| |
RATED
VOLTAGE.................................................................. |
|
OTHER THAN |
B CURVE 200 V
B CURVE 150 V |
| |
RESIDUAL RESISTANCE.................................................... |
|
BETWEEN TERMINAL |
1/2 10Ω
2/3 10Ω |
MAX |
| |
INAULATON RESISTANCE.................................................. |
|
MORE THAN 100MΩ
AT500 VDC |
| |
DIELECTRIC........................................................................... |
|
FOR 1 MINUTE OR MORE
AT 500 VDC |
| |
TRACKING ERROR............................................................... |
|
-40-0dB<= 3dB |
| |
SWITCH RATING................................................................... |
|
MORE THAN 500V AC 1A |
| |
R160,R162 SWITCH RATING............................................. |
|
MORE THAN 1500V AC
1A |
| |

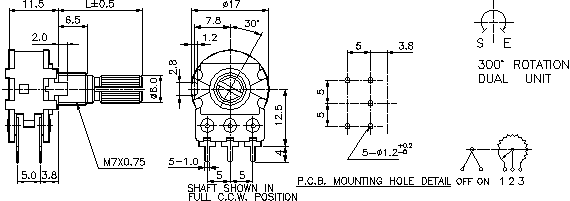

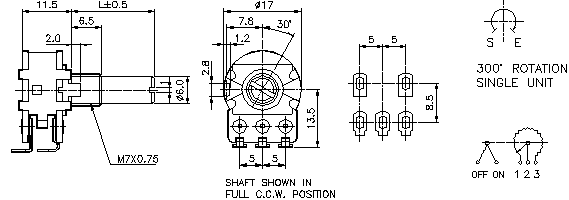

MECHANICAL SPECIFICATION |
|
|
|
|
| |
TOTAL ROTATION ANGLE................................................... |
|
300±5° |
| |
BUSHING NUT TIGHTING
STRENGTH............................ |
|
MORE THAN 7kg |
| |
SHAFT STOP STRENGTH................................................... |
|
MORE THAN 7kg |
| |
OPERATING TORQUE FORCE........................................... |
|
20-200 g-cm |
| |
SHAFT STOP STRENGTH................................................... |
|
MORE THAN 6kgf.-cm/min |
| |
TERMINAL STRENGTH........................................................ |
|
MORE THAN 500g-cm/10±SEC
SOLDING
HEAT 300±5°/3SEC 200g-cm/10±1SEC
RESIST CHANGE WITH±2% |
| |
ROTATION/SLIDING LIFE.................................................... |
|
MORE THAN 15000 CYCLES |
| |
SWITCH LIFE.......................................................................... |
|
MORE THAN 10000 CYCLES |
| |
CLICK POSITION................................................................... |
|
center or 11 .41 positions |
| |
CLICK
TOTQUE..................................................................... |
|
100~400 gf.cm |
|
