Variiable non-wirewound
trimming resistor
(Analogue of RР1-51)

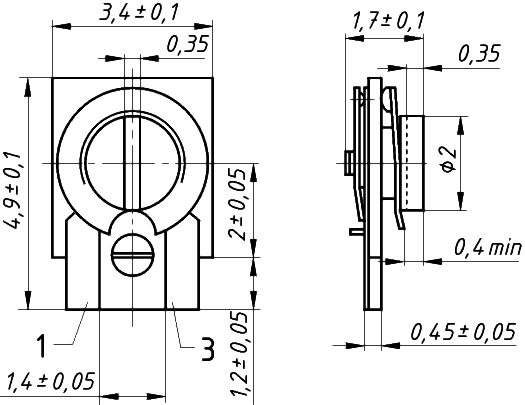

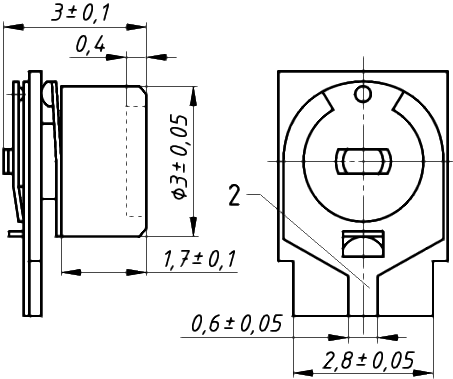

Specifications
| -
Rated resistance range : |
100...1
000 000 Оhm |
| -
Resistance law : А - linear ; B - non-linear,
back logarithmic; V - non-linear, logarithmic;
N - special |
| -
Power (at a temperature of 40°С) |
0,01
wt |
| -
Limiting element voltage |
no
more than 5 V |
-
Tolerance on rated resistance:
for resistance
up to 220 K Ohm
for resistance over 220 K Ohm |
+/-20%
+/-30% |
| -
Tolerance on resistance law A |
+/-20% |
| -
ТСR |
+/-0,0015
1/°С |
| -
Angle of rotation |
260° |
| -
Rotational life |
no
more than 100 cycles |
| -
Operating time to first failure |
15
000 hours |
| -
Period of preservation |
10
years |
| -
Mass |
no
more than 0,06 grm |
Operating
conditions
Mechanical
influence :
| -
Sinusoidal vibration: |
- frequency
range
|
1-80
Hz |
- amplitude
of acceleration
|
50
m/sq sec |
| -Multiple-operation
impacts with operation |
150
m/sq sec |
Climatic
influence:
| -
Temperature range |
from
-45 to +70°С |
| -
Relative air humidity (at a temperature
of +25°С) |
98% |
The
example of scematic designation when making out an order
:
Resistor
RР1-310а-100 Оhm +/-20%-Б АПШК.434160.042 ТУ
|
|
|
|
|
