欧洲军工AP电位器SP5-35B

 SP5-35B

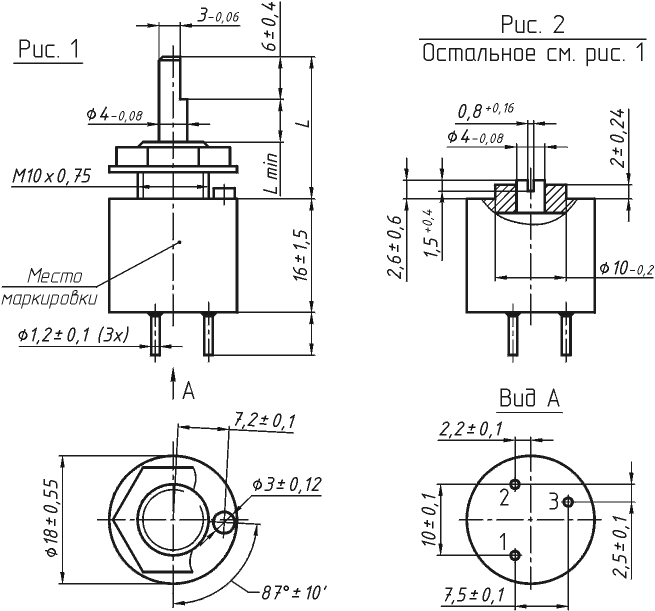

 欧洲军工AP电位器SP5-35B尺寸图
欧洲军工AP电位器SP5-35A

 SP5-35A

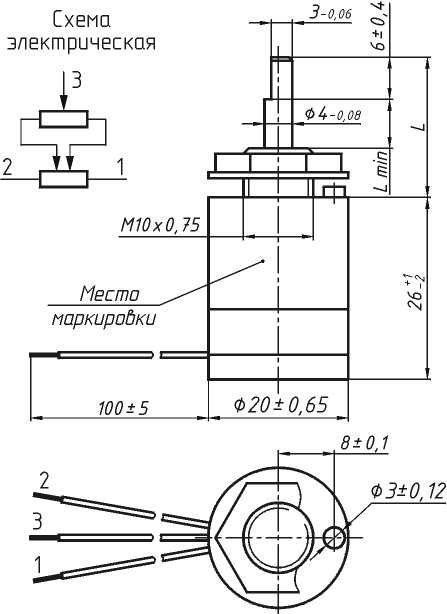

 欧洲军工AP电位器SP5-35A尺寸图


The resistors are used in alternating-current and direct-current circuits.

Specifications

- Coarse and fine adjustment
- High resolution
- Stability of gain under mechanical and climatic influence
- Power (at a temperature of   55°С)
          SP5-35А
          SP5-35B
1 wt
0,5 wt
- Rated resistance range
          SP5-35А
          SP5-35B
68...22 000 Оhm
68...15 000 Оhm
- Tolerance on rated resistance +/-10%
- Quantity of cycles of operation 5 000
- Rotational life 25 000 hours
- Resolution
         SP5-35А:
                 68...3 300 Оhm
                 over  3 300 Оhm
         SP5-35B:
                 68...1 500 Оhm
                 over 1 500 Оhm

+/-0,02%
+/-0,01%
+/-0,02%
+/-0,01%



Operating conditions

Mechanical influence :

- Sinusoidal vibration:

- frequency range

 1-600 Hz

- amplitude of acceleration

 100 m/sq sec
- - Mechanical impacts of multioperation (acceleration) 100 m/sq sec


Climatic influence:

- Temperature range from -60 to +70°С
- Relative air humidity (at a temperature of  +35°С) 98%
