SP5-20V |
 |
|
|
Variable wirewound trimming resistor
The resistors are used in direct,
alternating and pulsed-current circuits at a voltage up
to 200 V.
Specifications
| -
All-climatic operating |
| -
Power (at a temperature of 85°С) |
2
wt |
| -
Rated resistance range |
1...33 000
Оhm |
| -
Tolerance on rated resistance |
+/-5%;+10% |
| -
Quantity of cycles of operation |
500 |
| - Resistance
behaviour |
Linear |
| - Rotational
life |
40 000
hours |
Operating
conditions
Mechanical
influence :
| -
Sinusoidal vibration: |
- frequency range
|
1-5000
Hz |
- amplitude of
acceleration
|
200
m/sq sec |
| -
Mechanical impacts of single operation (acceleration) |
1
500 m/sq sec |
| -
Mechanical impacts of multiple operation(acceleration) |
750
m /sq sec |
| -
Linear acceleration |
1
000 m /sq sec |
Climatic
influence:
| -
Temperature range |
from
-60 to +125°С |
| -
Relative air humidity (at a temperature of +35°С) |
98% |
| -
Air pressure |
0,7-294
K Pа |
|
|

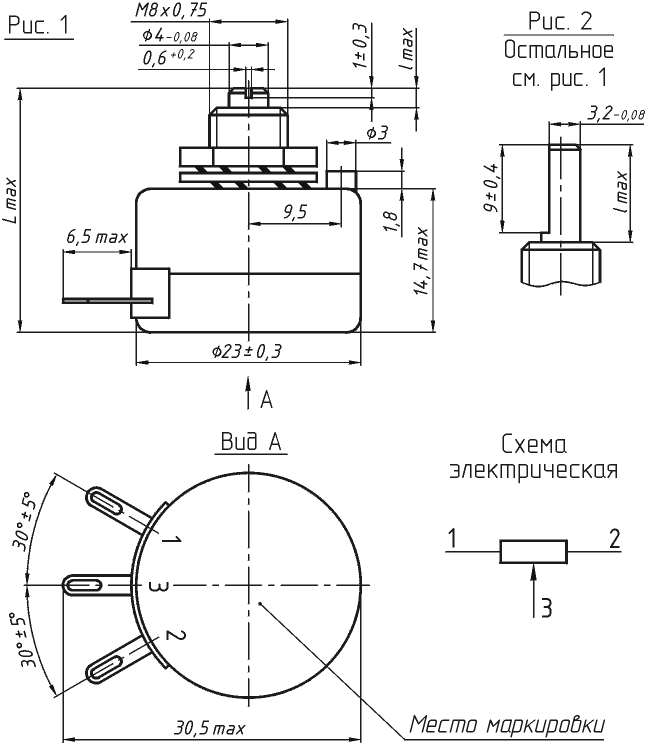

| View |
Drawing |
L |
l |
Mass |
| SP5-20VА |
1 |
25 |
2 |
16,5 |
| SP5-20VB |
2 |
33 |
10 |
17,5 |
| SP5-20V |
1 |
37 |
14 |
18 |
|
| |
|
