RP1-305M
|
 |
|
|
|
|
|
|
Specifications
| -
Reference resistance ( in a point
B), K Ohm |
1,3+/-0,26 |
| - Linear
resistance change on a section B-V, K Оhm |
3,7+/-0,37 |
| - Resistance
law |
linear
А |
| - Tolerance
on resistance law А |
+/-10% |
| - Rated
dissipation |
0,063 wt |
| - Limiting
element voltage |
3 V |
| - Tolerance
on rated rsistance |
+/-10% |
| - ТCR |
+/-0,0015
1/°С |
| - Total
rotation |
260° |
| -Wear |
40 000
cycles |
| -Life- time
to first failure |
20000 hours |
| -Mass |
no
more than 6.5 grm |
|
|
Operation
conditions
Mechanical
influence:
-
Sinusoidal vibration:
- frequency range, Hz
- amplitude of acceleration,g |
1-250
50 (5) |
| -
Multiple impacts acceleration, g |
150
(50) |
Climatic influence:
| -
Temperature range |
frоm
-45 tо +80°С |
|

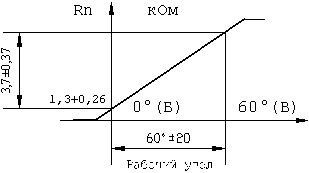

| Resistance
law.
 |
| Switch-on
scheme. |
|
|
|
|
